Used 2017 Grand Design Imagine 2400BH

Travel Trailer

Stock #601443

Comfort, TX

Call for more info 830-431-9677

1 of 22

+22

List Price: $20,900

Payments From: $180 /mo.

Sleeps 8
1 Slides
Bunkhouse

Outdoor Kitchen

30ft Long
5,595 lbs

See All Specs

Specifications

Sleeps	8	Slides	1
Length	29 ft 11 in	Ext Height	10 ft 11 in
Int Height	6 ft 9 in	Hitch Weight	505 lbs
GVWR	7495 lbs	Dry Weight	5595 lbs
Fresh Water Capacity	52 gals	Grey Water Capacity	71 gals
Black Water Capacity	39 gals	Furnace BTU	35000 btu
VIN	601443

Description

If you have been searching for a travel trailer with a set of double size bunk beds with bike storage below, a u-shaped dinette for meals or extra sleeping space, and an outside kitchen for the chef in the family then your search is over. This Imagine 2400BH includes those features plus much more!

Step inside near the rear and notice the double over double size set of bunk beds including a ladder on your left. Continuing forward you will find a rear bath next to the bunks. Inside enjoy the convenience of a 30" x 36" shower including a skylight, a linen cabinet, toilet, and vanity with sink, plus overhead storage.

To the right of the main entry find shoe storage, and a wardrobe/pantry with a 32" LED TV on a swing arm plus entertainment center. The kitchen area continues along the curb side of the unit. You can cook easily using the three burner range with overhead microwave oven, counter space, and a large single sink along the interior wall. You will also find a flip-up countertop extension, and ample overhead cabinets for your dishes and things.

Opposite the kitchen space along the road side there is a slide out u-shaped dinette, and refrigerator including a handy pet dish station beneath. The dinette can quickly be made into added sleeping space for your family or even a couple of overnight guests.

Continue towards the front of the trailer where you will find a space saving sliding pocket door that leads you into the front master bedroom. Here you can relax and enjoy a great nights rest on the queen size bed including dual bedside wardrobes, and overhead cabinets.

The outdoor chef in the family will love the outside kitchen including a refrigerator and two burner cooktop. The whole family can enjoy the drop frame pass-through storage compartment in front for all of their outside camping gear, the Universal Docking Station, the awning, and much more!

Features

Standard Features (2017)

Exterior

Roof Ladder
Solar Power Inlet
Backup Camera Prep
Black Tank Flush
80% Tint Radius Safety Glass Windows
20# LP Bottles (2)
28" Radius Entry Door
Exterior Speakers
High Capacity Water Pump
Battery Kill Switch (Pass Thru)
Oversized Tank Capacities
Power Tongue Jack

Construction

Gel Coated Fiberglass Exterior
One-Piece Roof Membrane with 12-Year Warranty
Easy Access Low Point Drain Valves
Insulated Storage Doors
Magnetic Storage and Entry Door Latches
Laminated Aluminum Framed Rear Wall (R-7)
Laminated Aluminum Framed Side Walls (R-7)
Laminated Aluminum Framed Roof and End Walls in Slide Rooms
Laminated Aluminum Framed Main Floor (R-30)
5" Radius Wood Framed Roof (R-40)

Interior

Solid Hardwood Drawer Fronts
Frosted Glass Cabinet Door Inserts (Kitchen Upper)
Solid Core Cabinet Stiles
Pre-Drilled and Screwed Cabinetry
Ball Bearing Full Extension Drawer Glides
Large Panoramic Windows
Upgraded Residential Furniture
Radius Ceiling with 81" Tall Headroom

Kitchen

Sink Cover
Residential Countertops
Stainless Steel Microwave
Stainless Steel 3-Burner Range w/Oven
Double Door Refrigerator

Bathroom

30" x 36" Residential Walk-In Shower
Skylight Over Shower
Power Vent Fan
Medicine Cabinet with Mirror

Bedroom

Master Suite with 60" x 80" Queen Bed
Solid Bedroom Door (Master Suite)
Oversized Underbed Storage
Residential Bedspread
TV and Cable Prep

Peace of Mind Package (Mandatory)

Drop Frame Front Pass Thru Storage
Aluminum "Tread Lite" Entry Steps
Stainless Steel Appliances
Walk on Roof
Residential Cabinetry
Universal Docking Station
17.8 Gal./Hr. Quick Recovery Water Heater
Black Tank Flush
Tri-Fold Hide-A-Bed Sofa
Spare Tire & Carrier
Nitrogen Radial Tires
Diamond Plate Front Rock Guard
"Pet Stop" Pull-out Food Drawer
Radius Interior Ceiling
Deep Seated Stainless Steel Sink
Residential Pull-Down Sprayer Faucet
Aluminum Rims
Fiberglass Front Cap

Ultimate Power Package (Mandatory)

Electric Awning w/LED Light
LED Interior Lighting
Motion Sensor Pass Through Lighting (LED)
Motion Sensor Entry Lighting (LED)
(HDMI) Bluetooth Stereo
High Definition LED Television
Detachable Marine Grade Power Cord w/LED Light
15k Ducted Main A/C
30 AMP Service

Four-Season Protection Package (Mandatory)

35k BTU High Capacity Furnace
Heated and Enclosed Underbelly with Suspended Tanks
Designated Heat Duct to Subfloor
High Density Roof Insulation with Attic Vent
Moisture Barrier Floor Enclosure
Residential (Ductless) Heating System Throughout
Double Insulated Roof and Front Cap (R-40)
Heated and Enclosed Dump Valves

Options

2nd AC 13.5k BTU (2650RK, 2670MK, 2950RL and 3150BH only)
Theatre Seating IPO Tri-Fold Sofa (Mandatory 2950RL) (N/A 2150RB or 2650RK)
Free Standing Table & Chairs (N/A 2150RB and 2650RK)
Fireplace (2650RK, 2670MK, 2950RL and 3150BH only - Mandatory)
50 Amp Service Wired and Framed For 2nd A/C (2650RK, 2670MK, 2950RL and 3150BH only - Mandatory)
Chaise Lounge Dinette (2150RB, 2650RK)

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Great experience with Russell and Sean
Had a great experience with Russell and Sean. We bought our new 5th wheel from them this week. It was a smooth and easy transaction. I would recommend dealing with them to all my family and friends. If you are in the market for a new RV go see Sean he is very knowledgeable about all RV’s explaining

REBECCA
Outstanding customer service
Johnathan in Seguin was my service person who was amazing and went above a beyond what I expected. He even used his lunch time in the rain to fix something inside the RV before I left. I am so appreciate his kindness and quality work on my RV. I will definitely ask for Johnathan next time if I need

Monica from Converse, TX
Very professional and knowledgeable, and real nice folks.
I want to say thank you to Russell and his staff at America Go RV. Within a couple days of me calling them. They found the identical AC unit for my rig and had it installed in couple hours after dropping it off. Very professional and knowledgeable, and real nice folks.

Bob

We are here to help, call us at
830-431-9677 or Contact Us

We are here to help!

830-431-9677
Contact Us
Contact Sales

AmericaGoRV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @830-431-9677 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

Used 2017 Grand Design Imagine 2400BH

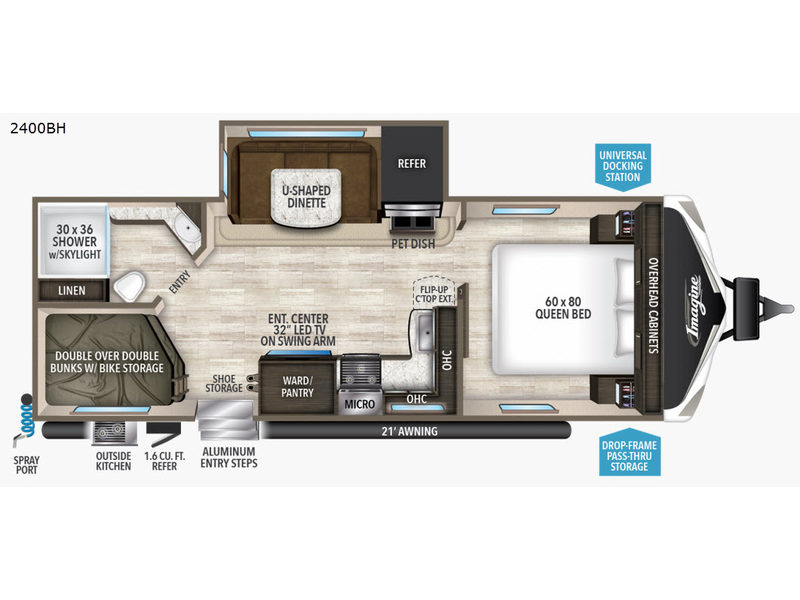

2400BH Floorplan
